With the continuous development of society and great advancements in oral medicine, people require a better appearance of teeth and a few people have tried orthodontics. Orthodontics treats malformed teeth by exerting a continuous pressure on the teeth and facial skeleton, applying various types of regulation apparatus [1]. During treatment, every force exerted on the tooth generates an equal force but in the opposite direction, and the support used for this counteracting force is called an “anchorage” [2]. In fact, an anchorage is a foundation that provides the force to correct the teeth. Normally, an anchorage is composed of normal teeth, palate and phatnoma during orthodontics.

In recent years, micro - implant anchorage systems, a breakthrough technology, have been developed, benefiting from the advancements in materials science, on the basis of the achievements of prosthetics [3-5]. The clinical application and efficacy observation of micro - implant anchorages have become a new research hot spot in the Department of Stomatology. Instead of taking teeth as the basis, as was previously the case, this new anchorage exerts the counteracting force of orthodontics on the jaw, thus completely avoiding the displacement of teeth. It solves a lot of problems existing in clinical anchorage. Micro - implant anchorages feature the efficacy that conventional methods cannot achieve. Moreover, it has attracted extensive attention for its advantages of slighter trauma, simpler operation, steadiness, reliable efficacy and limited dependence on the patient [6]. To explore and analyze the application and curative effects of micro - implant anchorages in orthodontics, this study carried out a retrospective analysis on clinical materials regarding 65 patients undergoing orthodontic treatment in our department, in 2012, among which 34 treatment group patients received treatment with micro - implant anchorages, while 31 control group patients were treated with palatal bar and facebow anchorages. The results of two groups were reported below.

Sixty-five patients with maxillary protrusion undergoing orthodontic treatment were selected. A total of 34 treatment group patients were treated with micro - implants as anchorages, while 31 control group patients were treated with palatal bar and facebow anchorages.

Clinical features

None of the patients had an orthodontic history or systemic diseases and their oral hygiene was fine. The teeth of the patients were convex in side view. The correction scheme provided for the extraction of four first premolars, or the first premolar of the maxilla or the second premolar of the lower jaw. The patients were randomly divided into treatment group and control group, according to their admission time. There were 34 patients in the treatment group, 18 males and 16 females, aged from 12 to 26 years(mean 21.3 years), and 31 patients in the control group, 15 males and 16 females, aged from 14 to 25 years (mean 20.6 years). No statistical significance was found in age, gender, disease type and clinical performance etc. between the two groups. This study was approved by the medical ethics committee of Binzhou Medical University Hospital, Shandong, China and all the patients enrolled in gave their informed consent.

Therapeutic methods

Treatment group

Implantation of the micro implant: the teeth which required implanting were separated with copper wire, and the implant position was marked; then panoramic and periapical radiographs were made; the form and position of the fangs and the adjacent tissue were examined; the periosteal flap was not carried out, and a longitudinal incision of 3 - 5 mm was required, if the implanting position was covered by floppy phatnoma mucosa; the implanting position was normally 2 - 3 mm at the binding site of the membrane and gingiva, or 2 - 3 mm towards the root of the tooth, and the implanting level was almost perpendicular to the facial bones. The root tip was shut after the operation to confirm the link between micro - implant and root of the tooth. After the operation, the patients were prescribedan oral antibiotic in case of infection and, meanwhile, required to keep the oral cavity clean.

Application of force on the micro-titanium screw

A chain rubber ring, or tension spring, was used to exert a force between the implant and draw hook, after the implantation of the micro - implant, which is normally applied; patients should then return on a monthly basis to change the chain rubber ring and tension spring.

Removal of the microtitanium screw

The top of the titanium screw was entangled with a manual screw tap and rotated counterclockwise, and the screw was then removed. Local infiltration anesthesia was unnecessary and the wound would heal in a couple of days without special processing.

Control group

In the case of the control group, a facebow was used as anchorage combined with an intraoral transpalatal bar. The facebow was worn for 8 to 12 hours a day and the traction was 200 to 300 g on each side. The other operations were the same as the treatment group.

Observational index

The main observational indexes were:  sella - nasion - A point (SNA) angle; sella - nasion - B point (SNB) angle; A point - nasion - B point (ANB) angle; upper central incisor - sella - nasion (U1 - SN) angle; lower central incisor-mandibular plane (L1 - MP) angle; upper central incisor - lower central incisor (U1 - L1) angle; upper central incisor - nasion - A point (U1 - NA) angle; lower central incisor - nasion - B point (L1 - NB) angle; OB (overbite); OJ (overjet); intercanine width; width of the first molars.

Statistical analysis

A statistical analysis was performed using SPSS 19.0 software, the measurement data was expressed as mean ± standard deviation (mean ± SD), and measurement materials was calculated with a pared-sample T-test. All data was considered statistically significant if p < 0.05.

After a 13-month treatment period, both anchorages were clinically effective, while the micro - implant anchorage revealed a better performance. The micro - implants used in treatment group were of good stability overall, but some patients developed mild edema in soft tissues around micro-plant.

Result comparison of cephalometrics

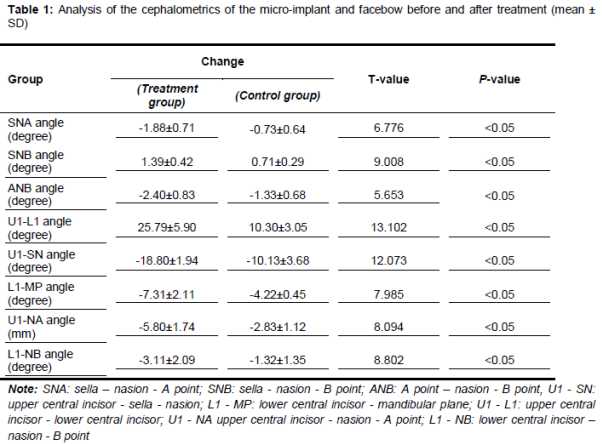

The variation of the cephalometrics index of the treatment and control groups is shown in . The cephalometric differences, SNA, SNB, ANB, U1 - L1, U1 - SN, L1 - MP, U1 - NA, L1 - NB angle of the micro - implant group and facebow group, before and after treatment, were of statistical significance (p < 0.05).

Comparison of the model measurement results

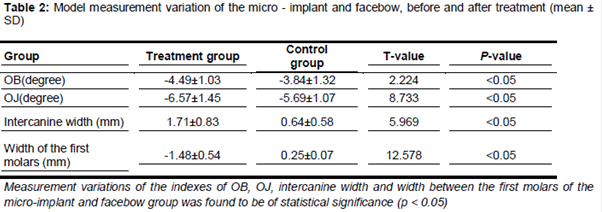

The comparison of the variations of the model measurement indexes, between the treatment and control groups, is shown in .

Steadiness of the micro-implant

The molar displacement of the treatment group was (3.60 ± 0.41) mm, while the molar displacement of the control group was (5.18 ± 0.72) mm, and the difference was of statistical significance, which suggests that the micro-implant was steady during the orthodontic treatment.

Malocclusion and malformation, along with caries and periodontal disease, are three common diseases of the oral cavity and its morbidity exceeds 50 %. Normally, in orthodontics, devices such as the intraoral group teeth, transpalatal arch, Nance bow, hyoid arch and some extraoral devices are applied [7]. In recent years, the micro-implant anchorage has become a new research hot spot in the field of stomatology, regarding the application and efficacy observation in orthodontics, for its advantages of steadiness, reliability, simple operation, slighter trauma, etc. The most remarkable difference between the micro - implant anchorage system and conventional anchorages is that its fixation is independent from synosteosis, but relies instead on the mechanical interlocking of the implant and the bone tissue [8-10].

The evaluation of the efficacy of orthodontic treatments applying conventional facebow anchorage depends on patient cooperation. But micro - implant anchorages can retract the anterior teeth by taking maximum advantage of tooth extraction diastema and improve the relation between facial form and molar, to achieve a perfect anchorage controlling effect [11,12]. Though both kinds of anchorages were clinically effective, a better performance of the micro - implants was observed. The comparison of the difference between the two groups, before and after the treatment, showed that the differences were statistically significant in U1 - NA, U1 - SN, U1 - L1 and L1 - MP. It suggested that the molars were steadier and the incisor retrusion and intrusion was better in the treatment group.

A reduction of SNA of the treatment group was observed (p < 0.05), which appeared to be caused by a point retrusion resulting from a large-scale adduction of the dental crown and root tip of the upper central incisor. As the treatment of the control group required the cooperation of the patients, the adduction was restrained and there was no obvious variation of SNA. Meanwhile, SNB of the treatment group induced considerably (p < 0.05), and the upper teeth and lower teeth including OJ, OB, relation between canine teeth and molars and the incisor location, were distinctly improved; the width between the molars of the upper and lower jaw was obviously reduced in the treatment group, probably as a result of the automatic adaptive adjustment of the dental arch after tooth extraction; while due to the long-term wearing of the facebow there was no distinct improvement in the control group.

During orthodontic treatment, the cacodontia is expected to move in the right direction and for the appropriate distance, while the anchorage tooth is not supposed to move, to maintain healthy cooperative relation [13]. In this research, the molar displacement of the treatment group was (3.60 ± 0.41) mm, which was obviously reduced compared with the control group, and the difference was of statistical significance.

Though the micro-implant is small in size, easy to operate and steadier than the conventional implant, some points should be highlighted [14]. Firstly, treatment objectives are dominated by children who fear an operation, therefore the operation is highly required; secondly, orthodontics may cause some complications such as local infection, tooth root damage and to the adjacent tissues, such as teeth roots, nerves and blood vessels, during the movement of the micro-implant, therefore the implantation should be as far as possible from any nerves, blood vessels, tissue and organs; thirdly, the implanting position should be determined considering the width between the root tips of adjacent teeth, and the safe distance must at least 4.95 mm.

Micro-implant acting as an anchorage in orthodontics can effectively improve the success rate of orthodontic treatment. Micro-implant treatment, which has the advantage of simple operation, minimal damage and good compliance, is superior to traditional orthodontic treatment; hence, it is worth adopting in clinical practice.
