Emulsions are widely used in the pharmaceutical, cosmetic, food, petroleum and agriculture industry. Emulsion is a two phase system of immiscible liquids where one phase is distributed throughout the other in the form of small globules and the dispersion being stabilized by emulsifying agent. These emulsions may be designed as macroemulsion, multiple emulsion and microemulsions [1]. Semisolid emulsions or creams are frequently used for the topical delivery of active agents for producing desired effects locally in the skin [2]. These emulsions may be water in oil (W/O) or oil in water (O/W) which depends on the surfactant employed in the formulation [3].

Surfactants are chemical entities that impart stability by forming a thin, non-adhering film at boundary between two immiscible phases by lowering the interfacial tension [4]. The stability of emulsion is affected by number of factors including temperature, pH and bacterial growth during the manufacturing, storage and usage of the emulsion [5,6]. This instability is demonstrated as coalescence, flocculation, creaming, breaking and phase inversion [1]. It is challenge for the scientists to design formulations that are sufficiently stable against these phenomena during the period of use. In this quest various methods have been established to predict the stability and also to evaluate the influence of various factors involved during storage. Very common methods to investigate physical stability involve organoleptic, rheological and microscopic evaluations [4].

Chronic exposure of human skin to UV irradiation and other environmental hazards result in significant oxidative stress leading to harmful cosmetic and health effects [7,8]. The antioxidants from natural sources provide new opportunities to combat the adverse effects mediated by oxidative stress [9,10]. The use of herbal extracts in cosmetics and topical cures is as a result of associated lower side effects as compared to their synthetic counterparts that has increased customer acceptance for such products [11].

Corn silk refers to the brownish, thread like stigma of female flower of maize (Zea mays L., family Poaceae). Corn silk has been used as a kind of remedy for many ailments including chronic nephritis, diuretic agent, benign prostatic hyperplasia, gout, cystitis [12], heart problems, jaundice and malaria [13]. Studies have suggested the use of CS extract as natural antioxidant in the diseases caused by oxidative stress because of the presence of phytochemicals like phenolics and flavonoids [14].

The purpose of this study was to examine the influence of storage conditions like temperature on physical characteristics of W/O emulsion containing CS extract. Furthermore, formulation was stored for a period of 12 weeks and physical stability was evaluated by observing phase separation, rheology and droplet size of formulations under observation.

Plant material

The corn silk was collected in the month of November 2014 from the District Bahawalpur, Pakistan. The plant material was botanically authenticated by taxonomist, Mr. Muhammad Sarwar, Department of Life Sciences, The Islamia University of Bahawalpur, Bahawalpur, Pakistan and the specimen (voucher no. 2393) was preserved in the herbarium of Department of Pharmacy, The Islamia University of Bahawalpur, Pakistan for future reference.

Chemicals

The lipophilic emulsifier, ABIL EM-90 (cetyl dimethicone Copolyol) was obtained from Evonik industries AG (Essen, Germany), liquid paraffin oil was purchased from Merck (Darmstadt, Germany), ethyl alcohol was supplied by BDH (Poole, England), 1,1-diphenyl-2-picrylhydrazyl (DPPH) was procured from Sigma-Aldrich (St. Louis,  USA). Water was freshly distilled in Lab.

Preparation of CS extract

The plant material was air dried at ambient temperature for four weeks. Dried material was pulverized to homogeneous size. Dried corn silk powder (80 g) was macerated with 800 mL of ethanol for 1 week, at room temperature. Stirring was performed for 30 min once at the start of soaking and then at the completion of the process.

The material was separated from residues by layers of muslin cloth and later by passing through Whatman filter paper no. 45. The filtrate was evaporated under vacuum in a rotary evaporator at 45 ^oC, until the volume was reduced to one third of the initial volume. Concentrate was refrigerated for development of formulation and further studies.

DPPH photometric assay

DPPH was used to determine the H-donor potential of the corn silk extract following a method previously described with some modifications [15]. The method is based on the principle that DPPH color changes from purple to yellow after reduction by antioxidants. Ninety microliters of DPPH solution (100 µM in methanol) was added to 10 µL of test ethanolic extract to a final volume of 100 µL, in a 96-well microtiter plate.  Ninety microliters of DPPH solution added to 10 µL of ethanol served as negative control. The reaction mixtures were stirred and kept for incubation at 37 ^oC in the dark. After 30 min the decrease in absorbance was measured photometrically at 517 nm with a microplate reader (Synergy-HT, BioTek, USA). Data obtained was computed on Ez-fit software. Scavenging activity was calculated as in Eq 1.

Scavenging activity (%) = {(A₀ – A₁)/A₀}100 … (1)

where A₀ = absorbance of control and A₁ = absorbance of test extract. L-ascorbic acid was used as reference standard.

Preparation of CS emulsion

Various formulation containing CS extract 4 %, ABIL EM90 2.5 - 5 %, liquid paraffin 8 - 16 % and water 76 – 84 % were prepared by heating the aqueous phase (water and CS extract) and the oily phase (liquid paraffin and ABIL EM90) separately at temperature of 70 ^oC to 75 ^oC. The oily phase was then added to the aqueous phase gradually. Mixing was carried out at 2000 rpm for 25 min using overhead stirrer (Stirrer type BS, Velp scientifica, Italy) until emulsion solidified.

The formulation was further stirred at 1000 rpm for 5 min and then 500 rpm for 10 min to accomplish the homogenization. The optimized formulation was selected by first storing the formulation at 25 ^oC for a period of 28 days. The stable formulations after the initial stress test were further stored at 40 ^oC to obtain the most stable W/O emulsion (CS extract 4 %, ABIL EM90 2.5 %, liquid paraffin 10 %, and distilled water 83.5 %).

Characterization and stability of CS emulsion

Centrifugation test

Centrifugation test was carried out by placing 2 g of formulation and base, stored at different conditions, in the 15 ml centrifuge tube and centrifuged for two runs of 10 min, at 5000 rpm in centrifugation machine (EBA 20, Hettich, Germany). At the end of each cycle, tubes were investigated macroscopically for the presence of any possible phase separation.

Rheological measurements

Rheological properties of the formulation were investigated using a cone and plate type rheometer (DV- III Ultra, Brookfield engineering laboratory, USA) equipped with a circulating system for temperature control. Rheological measurements were made at 25 ± 1 °C using a CP41 spindle. Shear rate was progressively increased from 20 - 86 s^-1 to construct the rheograms and data obtained was mathematically analyzed by a Brookfield programme, Rheocalc version V 1.01 (Brookfield engineering, USA) according to the Power law analysis as in and IPC Paste analysis as in Eqs 2 and 3, respectively.

τ = kDⁿ ……….(2)

Where is τ shear stress, D is shear rate, k is consistency index and n is the flow index.

Η = βR^S ………. (3)

where η is shear viscosity, R is the rotational speed, s is the shear sensitivity factor and β is consistency multiplier.

Microscopy

The emulsion morphology and particle size was determined through an optical microscope (Eclipse E200, Nikon, Japan) coupled to a high resolution digital camera. Micrographs were collected by using Minisee version 1.1 (Scop Tek Minisee, Japan) image analyzing software, at 100 × magnification. A small quantity of W/O emulsion was smeared on the glass slide and diluted it with external phase. Samples were covered by cover slip with care to avoid sample damage by shear stress.

The mean droplet size was reported by using calibrated ocular micrometer. The data was obtained from more than 50 globules from various micrographs of the sample.

Stability studies

Stability studies were performed on the optimized CS extract emulsion to assess their physical stabilities. The W/O emulsion was stored at 8, 25, 40 and 40 ˚C ± 75 % for a period of twelve weeks. The samples were withdrawn at regular intervals of 4, 8, and 12 weeks of investigation and evaluated for phase separation on centrifugation, changes in rheological parameters, and globule size.

Data analysis

All the results are presented as mean ± standard deviation (SD). Image analyzing software (Digimizer) was used to perform particle size analysis. One-way analysis of variance (ANOVA) was used to analyze the data for rheology. The level of significance adopted was p < 0.05.

Antioxidant activity

The results of DPPH photometric assay showed good antioxidant potential of the extract and formulation. The % DPPH activity plateaued at 81.5 ± 0.93 and 75.06 ± 1.27 for CS extract and CS emulsion, respectively.

Centrifugation test

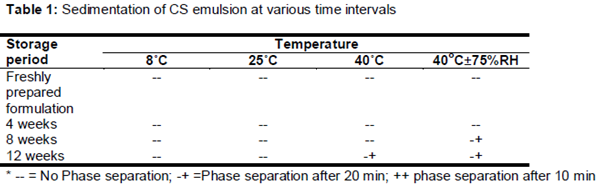

The formulation showed good long term stability as no phase separation was observed when freshly prepared emulsion was studied under experimental conditions. presents the effect of storage conditions after various time intervals on the formulation. It is observed that formulation, kept at 8 and 25 ˚C, did not show any phase separation at the completion of study. Higher temperatures (40 and 40 ˚C ± 75 % RH), however has influenced the stability as phase separation was observed after the 12th week and 8th week of study respectively.

Rheological properties

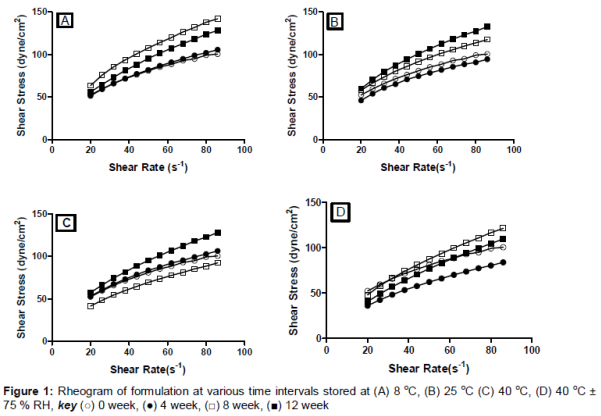

The relationship between shear stress and shear rate for formulation at various experimental conditions after different time intervals is shown in . It is apparent that flow curves were non-linear which is indicative of non-Newtonian, pseudoplastic behavior of formulation during study. Such characteristic is desired in the topically used pharmaceutical and cosmetic products. The flow pattern was observed to be similar after study period but variation in consistency was observed.

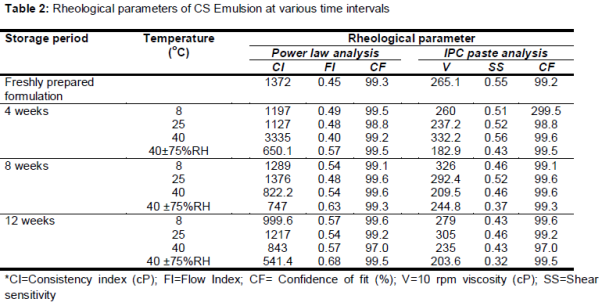

The values of rheological parameters are presented in . The consistency index (CI), flow index (FI), 10 rpm viscosity (V) and shear sensitivity (SS) values were in the range of 1372 - 541.4, 0.45 - 0.40, 265.1 - 182.9 and 0.55 - 0.32, respectively. The confidence of fit was in the range of 97.0 - 99.6 for the Power Law and IPC Paste analysis.

Droplet size and shape

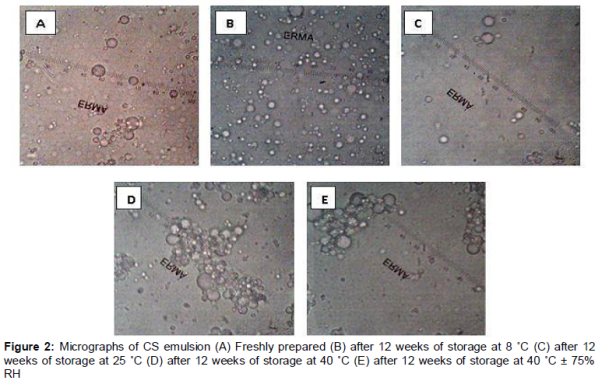

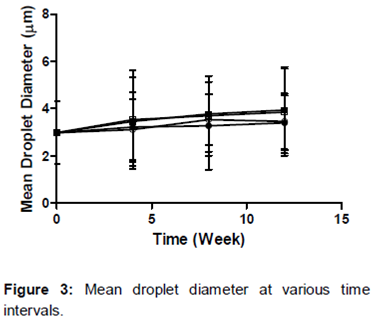

The representative photomicrographs of freshly prepared formulation and after 12 weeks of various storage conditions are shown in . The freshly prepared emulsion droplets exhibited spherical shape. The shape of the particles after 12 weeks storage at various conditions did not changed. The mean droplet size of emulsion was found to be within macroemulsion range (1 - 100 µm) for 12 weeks of study when kept at different temperature and humidity conditions (). The mean droplet size for freshly prepared emulsion was 2.98 ± 1.32 µm. After the completion of study the droplet size was 3.46 ± 1.18, 3.40 ± 1.16, 3.86 ± 1.84 and 3.94 ± 1.82 µm for formulation kept at 8, 25, 40 ˚C, and 40 ˚C ± 75 % RH, respectively. There was no significant change (p > 0.05) observed after the study in mean droplet size when stored at 8 and 25 °C but accelerated conditions (40 °C and 40 °C ± 75 % RH) showed a relatively greater increase in droplet size.

DPPH method is a nonspecific, accurate and rapid method of determining antioxidant activity [16]. Good antioxidant activity of the extract may be attributed to the presence of polyphenols [17]. The presence of such compound makes CS extract a potential ingredient for cosmetic products to combat skin problems naturally.

The centrifugation test is an accelerated stability test which is based on the principle that two substances with different densities become separated under centrifugal force. These substances may be two immiscible liquids or a liquid and insoluble solid. Accelerated separation of the dispersed phase as a result of creaming or coalescence serves as a test to predict the stability of the emulsion [18]. In our study the formulation showed sufficient resistance to the destabilization phenomenon over the defined period at low and moderate temperatures. This might be because of either less density difference between the oil and aqueous phase or it may be because of strong interfacial film at the interface [19]. At higher temperatures slight phase separation might be because of lowering of viscosity of oil phase that resulted in the sedimentation of the heavier phase under centrifugal force [20-22].

Rheology is concerned with the manufacturing and application of the semisolid topical formulations. Rheological parameters are very crucial in determining the physical stability of the formulation during the shelf life. Flow index value less than 1 indicate departure from the Newtonian characteristics that is desirable for achieving a coherent film and quick flow ability of the topical formulation  [23,24]. This study showed that non Newtonian, pseudoplastic behavior of the formulation did not change even under thermal stress, over time, demonstrating the physical stability. On the other hand, results of rheological study showed a decrease in consistency index during storage at various temperatures and agree with the results by other investigators [25].

Droplet size is one of the important characteristic of the topical formulation that contributes to the physical stability of dermal and cosmetic products. The small droplet size prevents the droplet coalescence and sedimentation against gravitational force [26]. Droplet size analysis in this study showed that the emulsion had a small droplet size in the range, desire able for topical emulsions. The extract loaded emulsions showed changes in only narrow ranges of droplet diameter that indicates that the formulation is fairly stable to destabilization under study conditions. On the other hand, the increase in mean droplet diameter was greater when formulation was stored at higher temperatures (40 ^oC and 40 ^oC ± 75 % RH). It has been stated that at higher temperatures, the viscosity of the continuous phase decline that may allow more frequent collision between the droplets and result in increased droplet size [27].

A W/O emulsion containing corn silk extract was evaluated for physical stability. The prepared corn silk extract W/O emulsion possesses good stability with adequate resistance to phase separation, pseudo plastic behavior and mean particle diameter in a narrow range over time. Thus, the developed topical formulation is a potential alternative for delivery of natural antioxidants for topical pharmaceutical and cosmetic applications.
