Sodium hyaluronate is the major component of synovial fluid and one of the components of cartilage matrix. In patients with osteoarthritis, intra-articular injection of sodium hyaluronate can effectively improve articular cavity lubrication, covers and protects the cartilago articularis, improves joint contracture, inhibits degeneration changes on the cartilage surface, improves pathological joint fluid, and enhances articular cavity lubrication. With the aging population growing each year, the number of patients with knee osteoarthritis is increasing. Patients with knee osteoarthritis suffer from several detrimental symptoms, including knee joint pain, swelling, and limitation of activity.

Several groups have demonstrated that sodium hyaluronate has a lasting pain-relieving effect among patients with knee osteoarthritis, and this effect has been observed clinically. Chen et al [1] treated knee osteoarthritis by injecting sodium hyaluronate into the articular cavity of 484 patients (610 knees) and evaluated the effect of treatment using the Lysholm’s knee score. The overall treatment success rate was 67.8 %. However, this effect was not observed among severely affected patients, and further work showed that a combination of surgery and drugs might be indicated for these patients [2].

Concurrent joint mobilization and intra-articular sodium hyaluronate injection may not only improve the effects of sodium hyaluronate treatment, but may also reduce pain and improve the effusion quantity and motion of joints in patients with knee osteoarthritis. Liu et al [3] treated patients with rheumatoid arthritis with oral NSAIDs and immunosuppressants with concurrent sodium hyaluronate injections of the knee joint. Although the treatment was generally successful, the onset of symptom relief was slow and of limited effect.

Nevertheless, local articular cavity treatment may control inflammatory responses and rapidly relieve joint pain. Therefore, Ma and Wang assessed the curative effect of applying Jintiange capsules together with sodium hyaluronate among 80 patients with knee osteoarthritis [4]. Using diagnostic criteria recommended by American College of Rheumatology, they confirmed that this treatment combination worked synergistically to relieve pain and repair cartilage.

Patient demographics

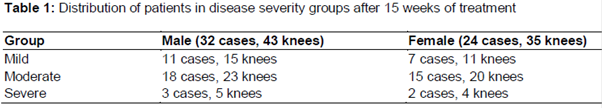

One hundred patients in our hospital (121 knees) diagnosed with knee osteoarthritis from April 2014 to January 2015 in The Third Hospital of Jinan, Jinan, Shandong, China were selected for this study. Approval for the study was given by the institutional ethical committee. There were 54 males (62 knees) and 46 females (59 knees). Patients were grouped by disease severity after 5 weeks of treatment () and re-evaluated after 15 weeks of treatment ().

Therapeutic method

For treatment with sodium hyaluronate, patients were seated with their knee joints fully exposed and at 90^o angle. Iodine and ether were applied to the skin to sterilize the puncture point, and any synovial fluid present in the knee joint was extracted prior to the injection of 20 mL sodium hyaluronate. Injections were performed weekly for 15 weeks. The effect of treatment was evaluated via range of motion of the knee joint.

Main outcome measures

Measurement of NO levels in joint fluid: To examine nitric oxide (NO) levels in the joint fluid, 1 mL of fluid was extracted from the knee joint of each patient prior to treatment and each week of treatment. NO levels were determined nitrate reductase method and a spectrophotometer. NO levels were determined after 5 weeks and 15 weeks of treatment.

Ultrasonic testing of synovium thickness: GE LOGIQEQ ultrasound equipment (General Electric, Fairfield, CT, USA) together with the linear probe ML6-15 were used for ultrasonic inspection of knee join synovium thickness. Patients maintained their knee joints at a 30-degree angle during the procedure, which was performed on transverse and vertical sections of the suprapatellar bursa. Synovium thickness was measure before treatment and after 5 and 15 weeks of treatment. All patients were examined by the same physician.

Scoring format

The Western Ontario and McMaster University Osteoarthritis Index (WOMAC) scoring standard was proposed and adopted clinically in 1988 [9]. This scoring system categorizes the severity of hip and knee arthritis and the curative effect of treatment in terms of some related symptoms and signs The Visual Analogue Scale (VAS) was used to record scores.

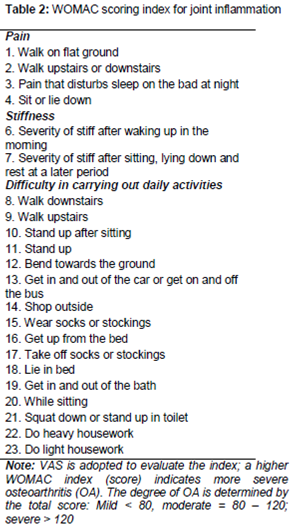

A straight line or ruler 10 cm in length is shown to patients, who mark the level of their pain or limited functional level on the line/ruler (0=least severe, 10=most sever). The scoring index of WOMAC joint inflammation is shown in .

Statistical analysis

Data are presented as the mean ± standard deviation. Differences between mean scores were tested using Student’s t-test with SPSS 13.0 software. Differences were considered significant at p < 0.95.

Overall therapeutic effect of hyaluronate injection

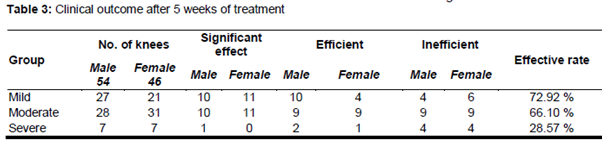

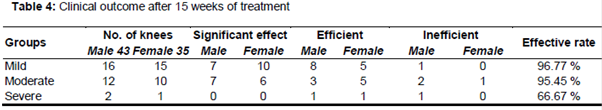

After 5 weeks of treatment, hyaluronate injections were effective in 72.92 % of mild group, 66.10 % of moderate group, and 28.57 % of severe group patients with an overall effective rate of 78 % (). After 15 weeks, treatment was effective in 96.77 % of mild group, 95.45 % of moderate groups, and 66.67 % of severe group patients, with an overall effective rate of 67.95 % ().

Changes in synovial fluid NO levels

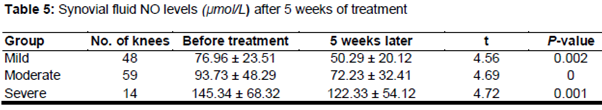

Synovial fluid NO levels in patients with mild, moderate and severe knee osteoarthritis significantly improved after both 5 weeks and 15 weeks of treatment compared to baseline levels (before treatment; ). Additionally, levels were significantly improved at 15 weeks of treatment compared to 5 weeks of treatment.

WOMAC scoring

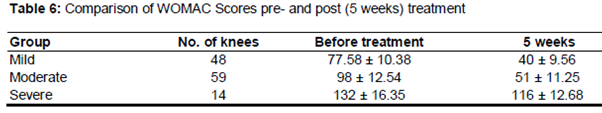

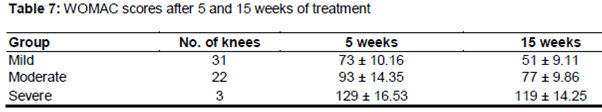

As illustrated in , the effect of sodium hyaluronate treatment was significant by 5 weeks of treatment, and as shown in , although this effect was maintained through all 15 weeks of treatment, the effect was less significant in later weeks than during the first 5 weeks.

Osteoarthritis is a chronic disease with a higher incidence rate among the elderly. The major clinical manifestations of the disease include pain, swelling, limitation of activity limitation, and clicking of the knee joint, which severely reduce the quality of life of patients. Osteoarthritis in the cartilage articularis first manifests as a progressive degeneration of the cartilage and reduction in sodium hyaluronate in the articular cavity, which results in the abnormal function of synovial fluid and leads to osteosclerosis of the subchondral bone and finally the formation of bone proliferation in the bond edge [5-7].

In this study, we demonstrated that the mechanism of action of sodium hyaluronate includes the improvement of joint fluid secretion, reduction in synovial fluid NO levels, and a decrease in synovium thickness. Additionally, injecting sodium hyaluronate into articular cavity may relieve inflammation, inhibit joint deterioration due to disease, and relieve pain, swelling, and activity limitation by promoting circulation in the joints and the recovery of knee joint function [8].

Nitrate concentrations were high in the joint fluid of knee osteoarthritis patients, and the inducible nitric oxide synthase inhibitor L-NMMA reduced the production of nitrates in tissue, indicating the production of NO in the joint fluid. Other groups have reported a serious imbalance in free radical metabolism in patients with knee osteoarthritis, resulting in widespread tissue damage in these patients. NO is a highly reactive free radical with a role in the regulation of blood pressure, nerve conduction, and host defense by killing bacteria, fungi, and cancer cells. Conversely, it can cause injury to normal tissues. Upon chondrocyte injury, the synthetic rate of nitric oxide synthase (cNOS)-and subsequently NO levels-increases [10,11]. NO is synthesized by inducible NO synthetase (iNOS), which can be activated by cytokines IL-1β, TNF-α, IFN-γ; therefore, NO may have a role in r bone pathological process associated with cytokine activation.

The role of NO in the pathogenesis of knee osteoarthritis is gaining increased research attention. It has been found that iNOS inhibitors can effectively inhibit inflammatory lesions in the knee joint [12], improve local blood circulation, promote the cartilage repair, and reduce NO production in the knee joint, thus mitigating NO-induced damage to the cartilago articularis.

Sodium hyaluronate was first extracted from the bovine vitreous body in 1934 by Meyer et al [13], who described its role in pain suppression articular cartilage degeneration, the protection of articular tissue, the improvement of joint contracture and pathological joint fluid, and the promotion of the synthesis of more sodium hyaluronate in the synovial fluid. Sodium hyaluronate does not only prevent joint synovitis and cartilage degeneration, but it is also protective and reparative to degenerated synovial fluid and cartilage. The injection of sodium hyaluronate into the articular cavity has become an important prevention and complementary therapy for knee osteoarthritis [14]. Additionally, sodium hyaluronate can act to clear up cell debris generated from rapid metabolism in the joint.

After intra-articular sodium hyaluronate injection, the treatment success rate was higher in patients with mild symptoms; the effective treatment rate in this group reached 72.92 % after 5 weeks, while this rate was only 28.57 % in the severe group. The treatment success rate further improved after 15 weeks of treatment compared to 5 weeks of treatment; however, effective of the treatment was still not apparent. Therefore, sodium hyaluronate treatment proved more effective in patients with mild disease than in those with severe disease. For patients with severe disease, surgery and/or other drugs are indicated.

We also observed a positive correlation between synovial fluid NO levels and clinical scores of knee osteoarthritis and synovium thickness. Additionally, NO levels were significantly reduced in all three disease groups (mild, moderate, and severe) after treatment with sodium hyaluronate. However, differences in synovium thickness were only significant in the moderate group, with no significant differences observed in the mild or severe group. This may indicate that knee articular cavity synovium in patients with mild osteoarthritis is close to normal levels and that sodium hyaluronate treatment relieves disease symptoms mainly by increasing articular synovial fluid metabolism [15]. However, as the synovium of patients with severe knee osteoarthritis is typically severely swollen, congested, full of lesions, sodium hyaluronate may be unable to penetrate the tissue, explaining the absent effect of treatment in patients with severe disease.

The findings of this study demonstrate that intra-articulate injection of sodium hyaluronate into the knee joint has a positive effect on articular cavity NO levels, promotion of joint fluid secretion, increased joint lubrication, and effective restoration of synovium thickness, thus confirming the mechanism of action of sodium hyaluronate.
