Skin, the largest organ of human being, plays a vital role as a barrier against infection, hurt and loss of water and electrolytes, etc. [1]. In recent years, large areas of skin and soft tissue defects have been increasingly occurring in trauma and burns, and treatment of large areas of skin defects have become a significant problem clinic [2,3]. Currently, the main strategy for treating skin defect is autologous skin grafts, and however the autologous skin is limited, especially for children [3]. Thus, it is important and necessary to find more ways to treat large areas of skin defects.

Recently, tissue engineering advancements have improved the understanding of wound healing and strategy for skin repair and regeneration [3-5]. The tissue engineered dermal equivalent could be constructed with fibroblasts and biocompatible scaffold [5]. Previous investigations have reported that gelatin and bletilla striata gelatin are good film-forming materials, which could be made into scaffold. Salvia miltiorrhiza can promote tissue repair and growth of wound granulation tissue via promoting the expression of endogenous epidermal growth factor (EGF), fibroblast growth factor (bFGF), vascular endothelial growth factor (VEGF), transforming growth factor-β1 (TGF-β1), and insulin-like growth factor 1 (IGF-1) [6]. In addition, the essence of granulation tissues is capillaries and fibroblasts, and therefore the Salvia miltiorrhiza has a good ability to promote angiogenesis.

In this study, by using freeze-drying the porous scaffold was prepared with raw materials of gelatin, bletilla striata gelatin and Salvia miltiorrhiza. Then, the artificial corium was constructed by adding fibroblasts into the prepared porous scaffold. Subsequently, in order to explore the feasibility of the composed corium in the clinic for treating large area of skin defect, the vascularized effects of dermal grafts were studied.

Materials and chemicals

Gelatin was purchased from the Chinese Medicine Group Chemical Reagent Co., Ltd. (Shanghai, China); Bletilla striata gelatin and Salvia miltiorrhiza extracts were obtained from the Pharmaceutical laboratory of Hubei University of TCM (Wuhan, China); the composite corium was constructed by culturing fibroblast cells in gelatin-co-Bletilla striata gelatin/Salvia miltiorrhiza materials. Trizol Reagents were purchased from Invitrogen Biotech. Co. (Shanghai, China); VEGF and β-actin antibodies were purchased from Santa Cruz Biotechnology (Shanghai, China). All other chemicals used in our study were analytical reagent grade.

Animals and grouping

Male SD rats (220-260 g) were purchased from the Animal center of Medical College of Wuhan University (Wuhan, China). A total of 45 SD rats were randomly divided into three groups (n=15), including two experimental groups (group 1 was natural corium and group 2 was artificial corium) and a control group (group 3). All animal experiments in the study were in accordance with the National Institute of Health Guide for the Care and Use of Laboratory Animals, and all the experimental protocols were approved by the Animal Care and Use Committee of the Renmin Hospital of Wuhan University (approval ref no. 20140207#).

Animal studies

After intraperitoneal injection (ip) of sodium pentobarbital (40 mg/kg), the rats were anesthetized and fixed. Routine disinfection and skin preparation was performed and then a 3 × 3 cm section of skin was dissected from the back of each animal and placed in saline. In the natural corium group, the skin graft was then covered and stitched in situ; in the artificial corium group, the subcutaneous tissue, including the deep fascia, were completely stripped and a 2 × 2 × 0.2 cm artificial dermis graft was placed on the wound prior to an autologous skin graft, which was then covered and stitched; in the control group, the subcutaneous tissue, including the deep fascia, were completely stripped, but only an autologous skin graft was placed on the wound, which was then covered and stitched. Sample collection was made at 3, 7, 14, 28 and 56 day after surgery, whereby three rats were sacrificed in each group and wound healing was observed. In the control and natural corium group, full-thickness skin tissues at the surgical sites were harvested; in the artificial corium group, full-thickness skin tissue and the artificial dermis implanted at the wound site were collected. The samples were subjected to hematoxylin and eosin (HE) staining. The expression of VEGF gene was detected by RT-PCR in samples collected from days 3 and 7, and the samples collected on day 7 were also used to detect the expression of the VEGF4 protein.

HE staining assay

The tissue samples were fixed with freshly prepared 4 % formaldehyde in phosphate-buffered saline (PBS) at room temperature for 4 h and were then washed in PBS three times for 60 min. Then, alcohol gradient dehydration was performed, subsequently embedded with paraffin. Then, tissue sections (5 μm thick) were prepared with H&E straining, according to the reported methods [7]. The histopathological changes were observed using a microscope (Olympus, Japan).

Real-time fluorogenic PCR assay

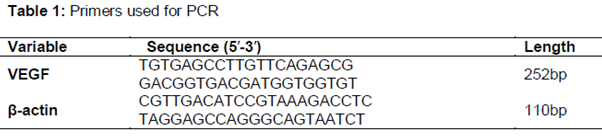

Tissues were collected, and total RNA was extracted using Trizol reagent. Total RNA was used for cDNA synthesis of VEGF and β-actin by reverse transcription using quantitative real-time PCR. All mRNA primers were designed by Primer Premier 5.0 and shown in . Reverse transcription was carried out according to instruction of the TOYOBO quantitative real-time RT-PCR reaction kits (Osaka, Japan).

Western blot analysis

VEGF protein expression was detected using western blot assay. Briefly, the tissues samples were collected, and total proteins were extracted. Then, protein concentration was determined using a BCA regent kit (Beyotime Biotech, Haimen, China). Then, 30 μg proteins were loaded onto sodium dodecyl sulfate-polyacrylamide gel for electrophoresis (SDS-PAGE) and blotted onto poly-vinylidene difluoride membrane (PVDF). Subsequently, VEGF and β-actin primary antibodies were used to determine protein expression at 4 °C for 12 h, followed by the secondary antibodies (HPR, Beyotime Biotech, Haimen, China). Finally, the immuno reactive bands were visualized with ECL-detecting reagent (Bio-rad, USA).

Statistical analysis

All data were expressed as the mean ± standard deviation (SD) and analyzed with one-way analysis of variance (ANOVA) with statistical software SPSS 13.0. P < 0.05 was considered statistically significant.

Wound healing

As shown in , wound healing was consistent with the conventional healing process in the natural corium group. At 7 days after transplantation, there was no visible abscess, exudation or other abnormal reaction (B). At 14 days after transplantation, the edge of the wound became blurred and hair growth was observed (C). At 28 days after transplantation, the surgical site appeared similar to normal tissue (D). The same as that of rats in the natural corium group, there was no abscess, exudation or other abnormal reaction after 7 days transplantation in the artificial corium group. After 14 days of the transplantation, the grafts appeared normal with the exception of one rat, where skin graft necrosis was observed.

Notably, the edge of the wound appeared blurred and wound healing appeared to have proceeded adequately (E). At 28 days after transplantation, wound contraction occurred, and a small amount of hair growth was observed. After 56 days, the grafts were still functional, and a small piece of graft was observed to have ischemic necrosis and was subsequently replaced by the surrounding skin. Compared to the control group, the color of the graft in the artificial corium group was light and the re-growing hair was shorter.

In the control group, significant dry shrinkage of the skin graft had occurred at 7 days after transplantation, and the wound edges of the remaining seven rats were significantly dark and gloomy. After 14 days of transplantation, grafts became dark, and at 28 days after transplantation, only four rats had functional skin grafts, and necrosis was also observed.

Tissue growth

Seven days after surgery, HE staining in the artificial corium group showed that inflammatory cells had infiltrated the artificial dermis, and new capillaries were observed and many fibroblasts were noted to be growing on the scaffold. Fourteen days after surgery, the porous scaffold was completely surrounded by tissue, fibroblasts were growing steadily and the new blood capillaries were confluent (A). At day 28, the material had been completely absorbed and many new collagen fibers with irregular arrangements were in place, the neo-vasculature was more mature and wound contraction was observed (B). At day 56, the structure of the skin was similar to normal rats, but lacked hair follicles and sweat glands, and there was a gap between the dermis and the deep tissues (C).

VEGR expression

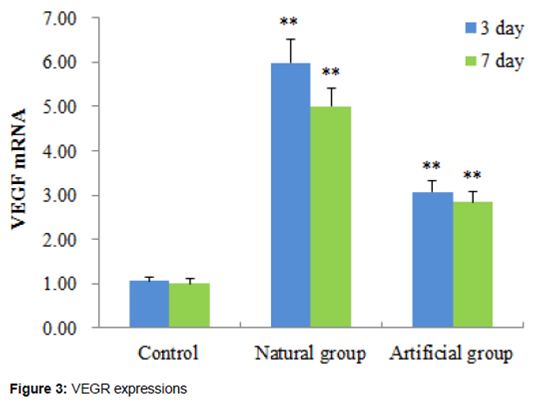

RT-PCR results showed that the VEGF gene was expressed in damaged tissues and the expression of VEGF was significantly higher in the natural and artificial groups than that in control group at 3 days after transplantation. The expression level decreased on the 7th day compared to the 3rd day (). In general, the expressions of VEGF in rats that received the artificial dermis were lower than that of rats in the natural dermis group.

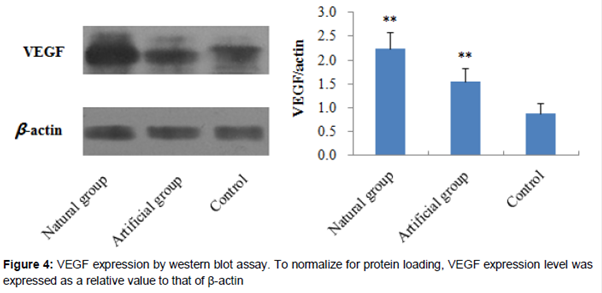

As can be seen from , our western blot assay results showed that VEGF expressions in the two experimental groups were significant higher than that in the control group (p < 0.01). However, our results also indicated that the expression of the VEGF protein in the artificial dermis group was lower than in the natural dermis group.

Skin tissue engineering uses modern biology and engineering principles to construct tissue substitutes for damaged tissues [8]. Artificial skin has been successfully used to repair large areas of defective skin resulting from trauma or burns [9,10]. However, artificial skin suffers from a number of disadvantages. For example, since only a layer of the epithelia is covered on the wound, the surviving epithelial tissues, with poor elasticity, can easily break and contract. Previously, histology has shown that the epithelial basement membrane contains incomplete collagen fibers and anchors [11]. Therefore, research has focused on better dermal substitutes [12].

In this regard, researchers found that the addition of β-FGF to the artificial dermis could accelerate tissue regeneration [13].

Meanwhile, Wilcke et al found that incorporation of VEGF and β-FGF into fibrin matrix materials could result in the construction of dermal substitutes, which could accelerate the formation of new blood vessels and improve graft survival when replanted into the full-thickness skin wounds of nude mice [14]. Furthermore, Pienimaki et al [15] found that EGF could significantly accelerate wound healing and promote keratinocytes to produce hyaluronan and Cuono et al [16] constructed a deepidermalized dermis (DED) with cadaver skin, which retained the scaffold and full basement membrane complex without immunogenicity, and the epidermal cells could differentiate into a multilayered epidermis on the DED. Hansbrough et al [17] cultured fibroblasts on poly glycolic acid (PGA) fibers in vitro for 2-3 weeks and then used it to repair a skin wound. They found that new blood vessels formed, fibroblasts proliferated and a collagen matrix formed.

In order to accelerate vascular formation and wound healing, many studies have been performed in which angiogenic drugs and fibroblast culture have been used and shown to be applicable techniques. Coulommb et al [18] constructed a dermal substitute with fibroblasts and collagen gel, and then transplanted the dermis onto rats. The results showed that the fibroblasts grew and proliferated on the wound. Meanwhile, Yamada et al [19] treated 26 wound sites with a fibroblast-cultured collagen sponge and the results showed that wound healing was significantly accelerated.

In our study, fibroblasts were cultured on a gelatin-co-Bletilla striata gelatin/Salvia miltiorrhiza composite to construct an artificial dermis, which was then transplanted onto the dermis of rats. The results showed that the artificial dermis integrated into the skin graft after 7 days, and there was obvious dermis-like tissue formation after 14 days. Furthermore, the artificial materials were absorbed and the artificial skin began to replace the defective skin after 28 days. On day 56, the resulting dermal structure appeared similar to normal skin. VEGF is the most important factor in wound healing [20,21] and is expressed approximately 1 day after skin injury, reaching a peak after 3–4 days. Its levels finally return to normal after 10 – 14 days [22]. Therefore, the expressions of the VEGF gene and protein were detected to assess wound healing. The results showed that the expression of VEGF was significantly high in the artificial dermis and natural dermis groups after 3 and 7 days.

The developed gelatin-co-Bletilla striata gelatin/Salvia miltiorrhiza composite may be applied as a dermal substitute to promote vascularization of damaged skin tissue. However, the composite still needs to be further investigated to confirm its effects on the repair of epidermal tissue.
